PREVOST PPS - Aluminium Clamp On Tapping Flange

No reviews
Regular price £15.83 EXC VAT
Regular price £19.00 INC VAT
Regular price EXC VAT Sale price £15.83 EXC VAT
Regular price £0.00 INC VAT Sale price £19.00 INC VAT

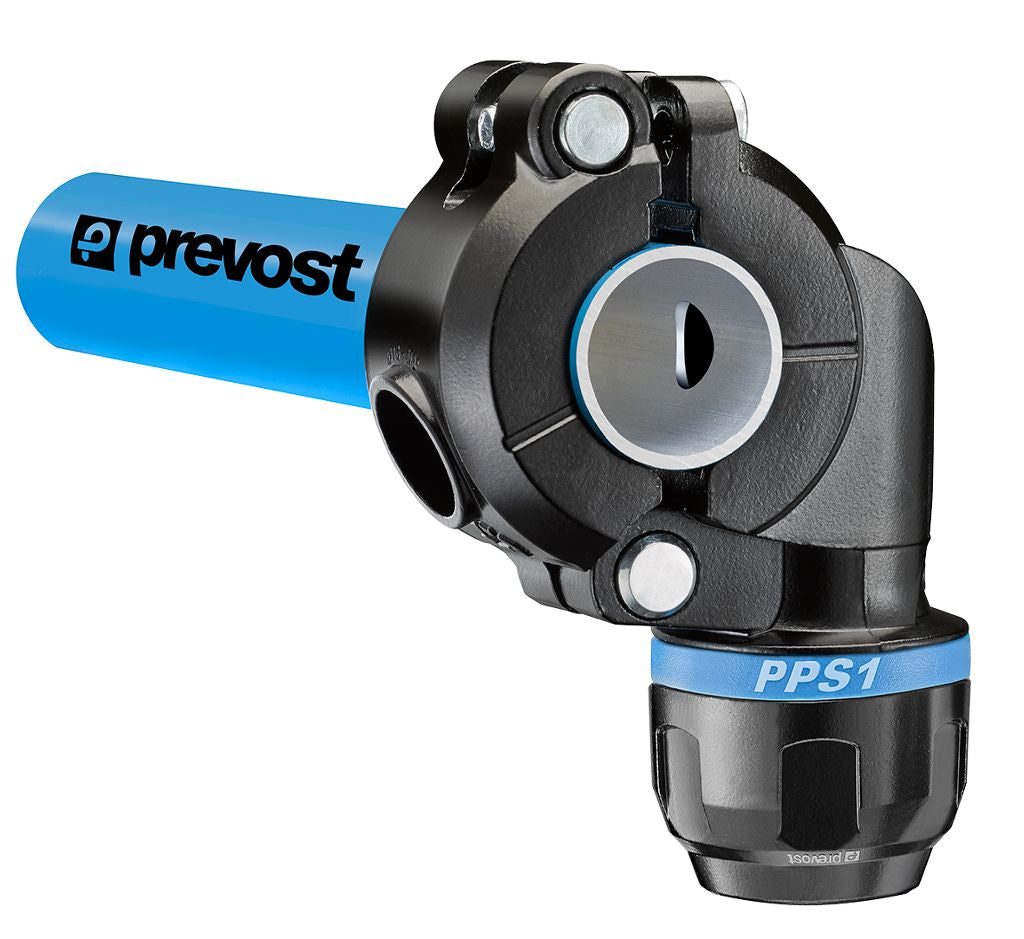

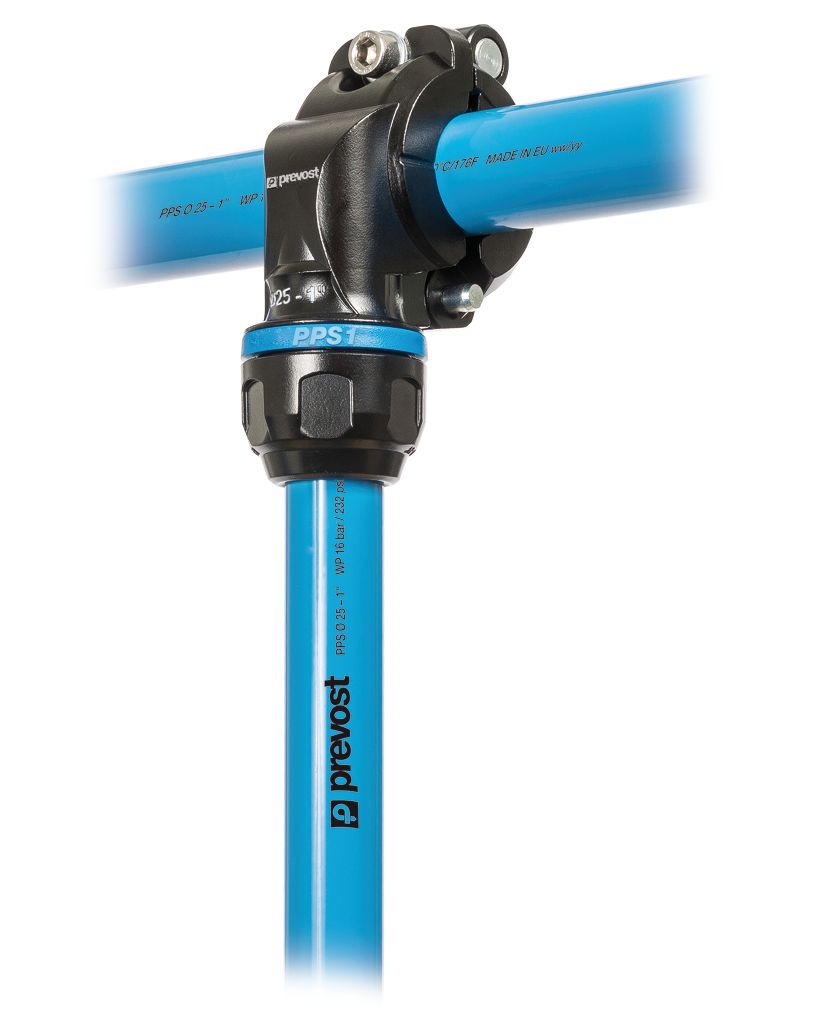

Prevost PPS - Aluminium Clamp On Tapping Flange

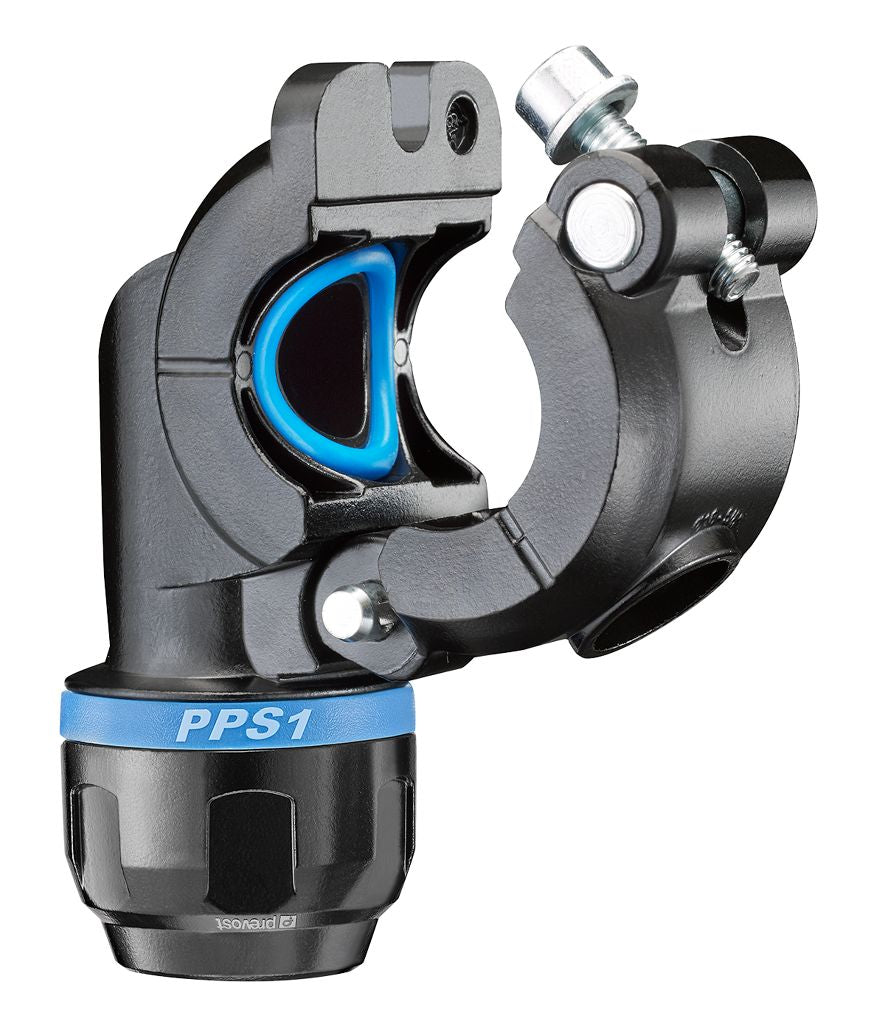

The Prevost aluminium clamp on tapping flange is part of a PPS system that is modular, scalable and ensures a flawless connection and zero leaks when used with Prevost PPS Aluminium Blue Pipe. The aluminium clamp on tapping flange is rigid and has a perfectly smooth internal surface, a low friction coefficient, and a large internal diameter to optimise flow rates. It has a gasket specifically designed for its application with two Teflon-coated lobes to optimise leak tightness. The clamp on tapping flange has an operating pressure of 0-16bar and a temperature range of -20°C to +80°C.

  • Body and nut: 100% aluminium
  • Push fitting modular system
  • Compact and lightweight
  • Marking and ISO colour
  • UV and heat-resistant
  • Very low pressure loss
  • Cost-effective
  • Rustproof

Fitting Size
Dimension A
Dimension B Dimension C
25mm - 16mm 32mm 94mm 70mm
25mm - 20mm 38mm 98mm 72mm
32mm - 16mm 32mm 94mm 70mm
32mm - 20mm 38mm 98mm 72mm
40mm - 16mm 32mm 122mm 102mm
40mm - 20mm 38mm 127mm 102mm
40mm - 25mm 46mm 130mm 103mm



Click here to download the Prevost PPS Brochure.
