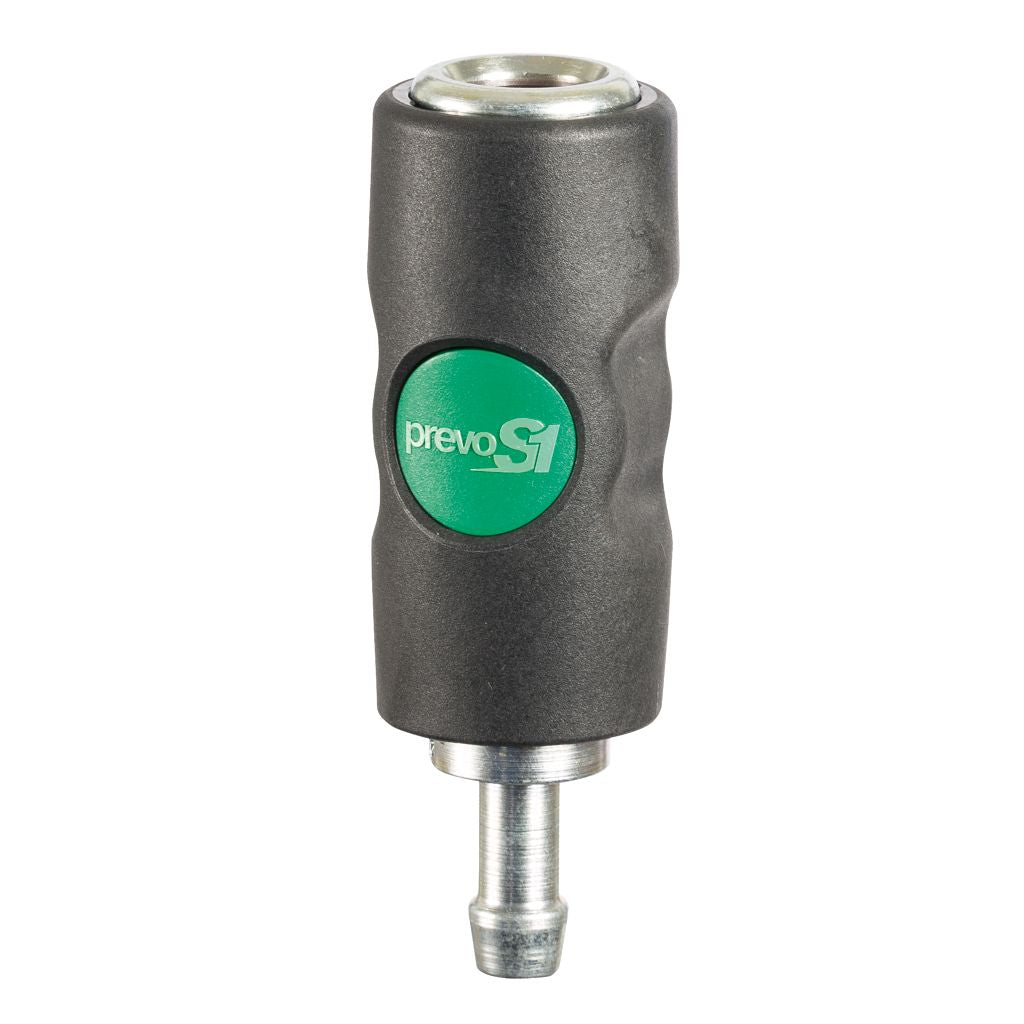

Prevost -  Euro (Type 25 / High Flow) Quick Release Safety Coupling Hose Tail ESI 07

The Prevost hose tail euro quick release coupling, also known as a Type 25 or a high flow coupling, is a "one push" safety coupling (avoids hose whip), made of a non scratch, anti static composite material. The hose tail euro quick release safety coupling has an operating pressure of 2-12 bar, a temperature range of -15°C to +70°C and a id passage of 6mm that allows flow rates at 6 bar of 1820 l/min (ΔP = 0,6 bar).

  • Body: Composite
  • "One Push" Safety System
  • Compact and lightweight
  • Colour coded
  • UV and heat-resistant
  • Very low pressure loss
  • Cost-effective
  • Corrosion Resistant

ID Hose

Size

Dimension A
Dimension B Dimension C
6mm 87.3mm 32.25mm 22.6mm
8mm
87.3mm 32.25mm 22.6mm
9mm 87.3mm 32.25mm 22.6mm
10mm
87.3mm 32.25mm 22.6mm
13mm 92.3mm 32.25mm 22.6mm

Click here to download the Product Sheet.

Delivery and Availability:

Estimated standard delivery 2-3 working days dependant on stock.

All delivery times are dependent on stock, please give us a call on 01489 785394 to discuss availability when ordering large quantities.



If you require any further information, or are unsure whether you require Prevost fittings or which fittings are best for your needs, please feel free to contact us via email on sales@altoncompressorservices.co.uk
